6-Axis ultrafast laser machine
Summary
This equipment is also a self-innovative cutting-edge product. It is developed for mass hole processing. It can realize surface texture, fine contour and micro-cavity processing on large thin-walled complex surfaces such as metals, non-metals and composite materials. It is especially suitable for efficient micro-hole processing of thin-walled parts with complex surfaces.
achievements display

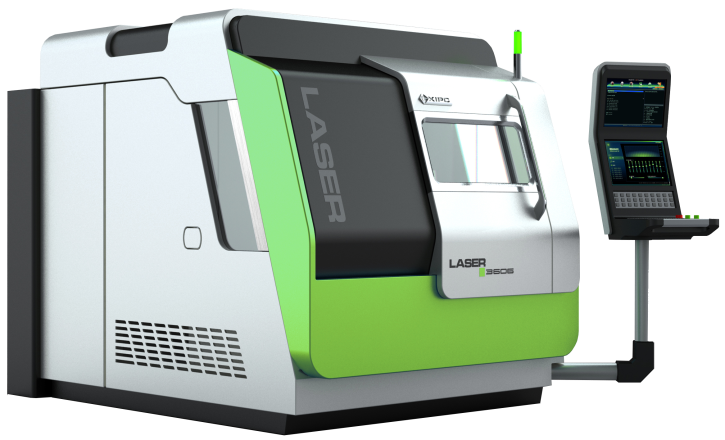

Six-axis ultrafast laser micromachining equipment
Features
- High power picosecond laser is equipped to achieve high processing efficiency on the premise of guaranteeing quality.
- The ability of automatic continuous processing of group holes with different process parameters.
- 6 Axis servo system can realize efficient processing of micro-holes in space angle of complex surface.
- Laser double pendulum axis design can realize high flexibility positioning processing function.

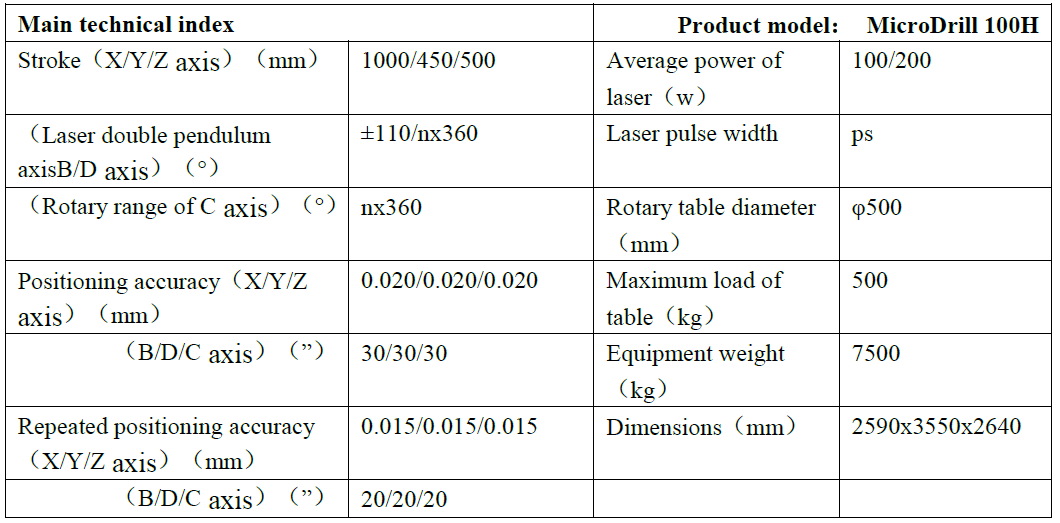

Performance indicators：
The sample application

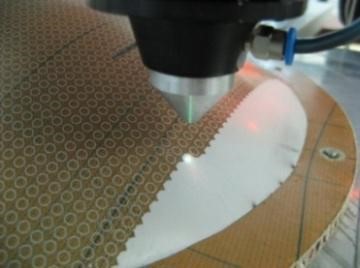

Application of group hole machining with six-axis ultra-fast laser micromachining equipment
Relevant articles and patents：
Wang Zi, Zhu Wenqi, Jiang Baoning, Yang Yang, Zhang Yaming, Yang Xiaojun, an ultrafast laser processing system based on closed-loop control, December 26, 2016, ZL201621439780.0, China;
Dang Jianhua, Wang Haibo, Wang Ning, Han Bing, a wiring device for swinging workbench, 2017.12.07, China, ZL201721697252. X;
He bin, Zhao Wei, Jiao Yue, Tian Dongpo, ultrafast laser micro hole processing device based on optical coherence tomography, April 18, 2018, ZL201820553258.5, China.
The sample application
