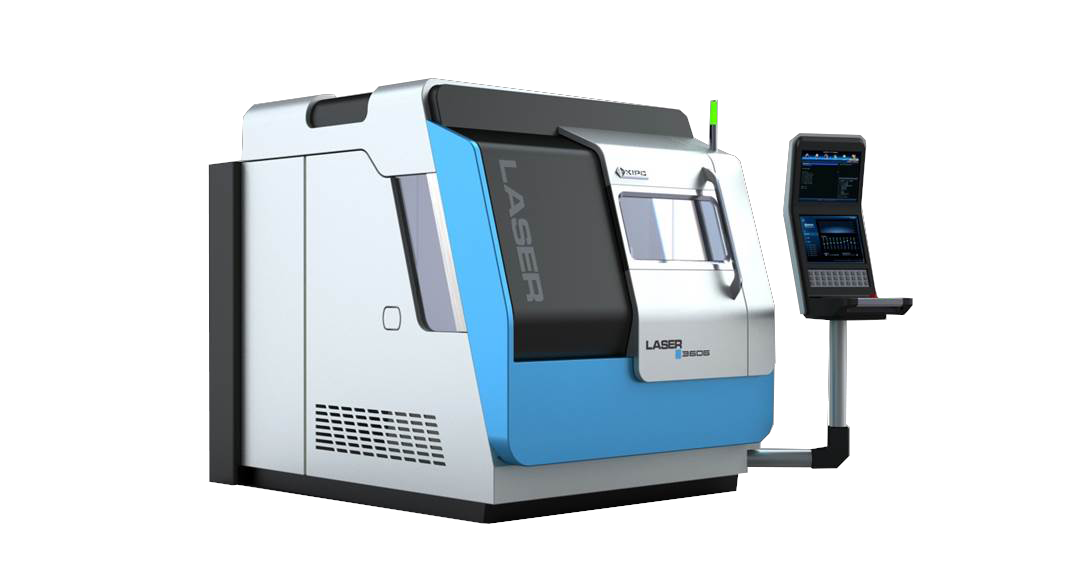

5-Axis ultrafast laser machine
Summary
High power ultra-short pulse laser is used as processing light source, equipped with compound beam scanning system. It is mainly aimed at ultra-fine cold processing of curved surface and complex surface parts. It can realize high precision micro-structure processing of various metals, non-metals and composites, such as through-hole, special-shaped hole, blind hole, micro-cavity, cavity and special-shaped groove. This equipment has great advantages in the hole-making of injector nozzle.
achievements display
Features
- It realizes the machining of angle microstructures of complex surfaces.
- It has the function of monitoring and detecting the position and deviation of the end spot.
- It has the function of real-time online image detection of processing state.
- With local optical path purification package, the equipment can be applied to the General Factory environment.
- With the self-adaptive positioning function of feature points, the problem of positioning caused by parts manufacturing and clamping deviation can be solved.

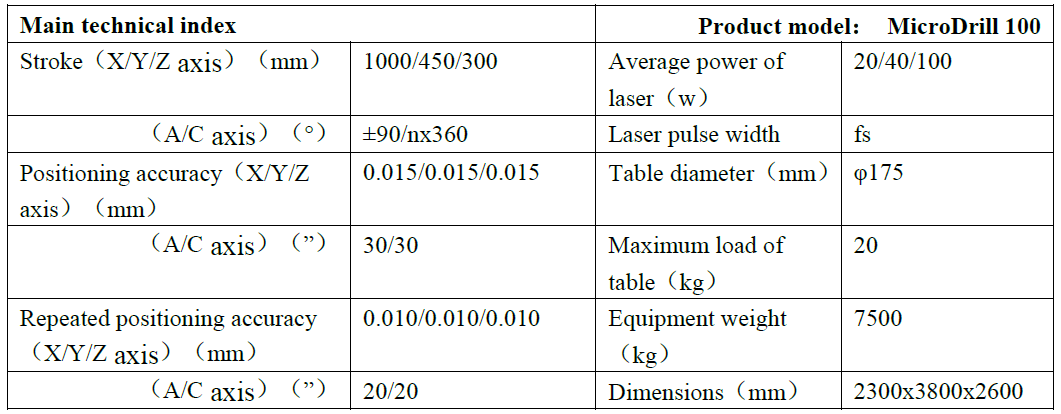

Performance indicators

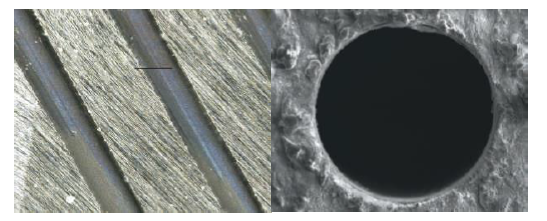

The sample application
Application of five-axis ultrafast laser micromachining equipment
Relevant articles and patents：
Xie Lei, Kang Wei, Zhao Hualong, a kind of fixture, 2015.09.07, ZL201520686093.8, China;
Kang Wei, Jiang Baoning, Wang Ning, Zhao Hualong, Yang Xiaojun, a laser focusing device (3D anti-collision), November 11, 2015, ZL201510765013.2, China;
Zi Jinfeng, Wang Haibo, Yang Xiaojun, Zhao Wei, laser processing equipment, January 23, 2016, ZL201630024406.3, China.
