The four basic properties of light are amplitude, frequency, phase and polarization. The polarization information of the reflected light of the detected target often carries unique information independent of the other three attributes, which has a unique advantage in reflecting the characteristics of the target.
The real-time polarization optical imaging camera can capture three linearly polarized images in different directions and one circularly polarized image simultaneously and calculate the full Stokes vector in real time. The camera has two functions: real-time defog intensity imaging and real-time full polarization imaging.

Technical indicators:
(1) resolution: 1024*768;
(2) focal length: 75 mm;
(3) diameter of entrance pupil: 20 mm;
(4) field of view: 4.2°*4.2°;
(5) angular resolution: 0.073 mrad;
(6) spectral range: 400-700 nm;
(7) frame frequency: 25 frames/s;
(8) network and PAL dual format output;
(9) size: 120*82*82 mm;
(10) weight: <2 kg.

Application fields:
Typical target detection, geological exploration, resource analysis, environmental monitoring, stress zone detection of industrial products, agriculture, medical imaging, fog-penetrating monitoring, etc.

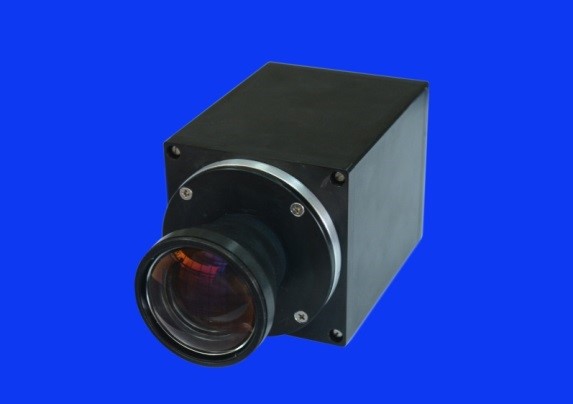

 Real time polarizing optical imaging camera
